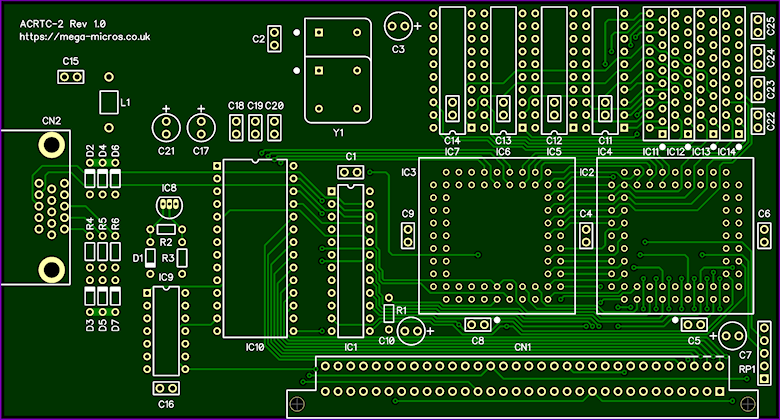

The
ACRTC-2 Board |
|
This board is
a highly
integrated and feature rich 640 x 480
resolution multicolour graphics board for the Mega-68000
Computer System. The board generates a VGA compatible
video signal allowing a standard PC monitor to be used
as a display device. |
| |
|
68030 SBC |
| Q. Is the board
compatible with the 68030 SBC ? |
| A. Yes 100% - the board
has been designed to work with the 68030 SBC too. |
 |
|
NEW Features: |
|
This is a
second generation ACRTC Board and as you would expect it is fully compatible
with the original ACRTC Board but comes with a number of
significant improvements - see here: |
| |
| Colour - 2, 4, and 16
colour modes |
| Programmable
RAMDAC - 16 software selectable colours from a palette of
262,144 colours |
| Now supports
up to 2MB of dedicated video DRAM |
| Integrated
high density D-Sub connector (15-pin VGA) |
| Flexible
design - can be
populated with DIP or ZIP video DRAM IC's |
| |
