The IDE Board

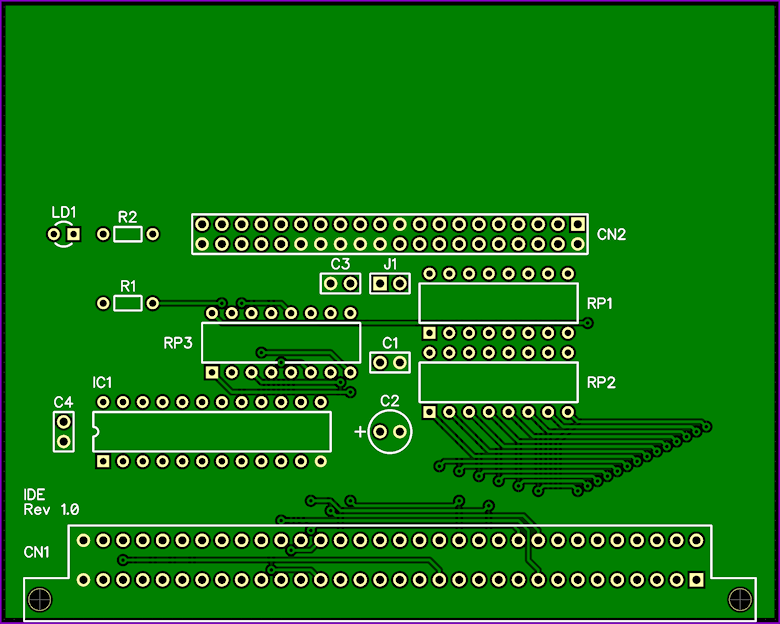

This board provides an 40W IDE / Compact Flash Interface for the Mega-68000 Computer System.

68030 SBC

Q. Is the board compatible with the 68030 SBC ?

A. Yes 100% - the board has been designed to work with the 68030 SBC too.
