** This page is under construction **
The ATmega328P-PU Microcontroller
The ATmega328P is a low-power CMOS 8-bit microcontroller based on the AVRŽ enhanced RISC architecture.

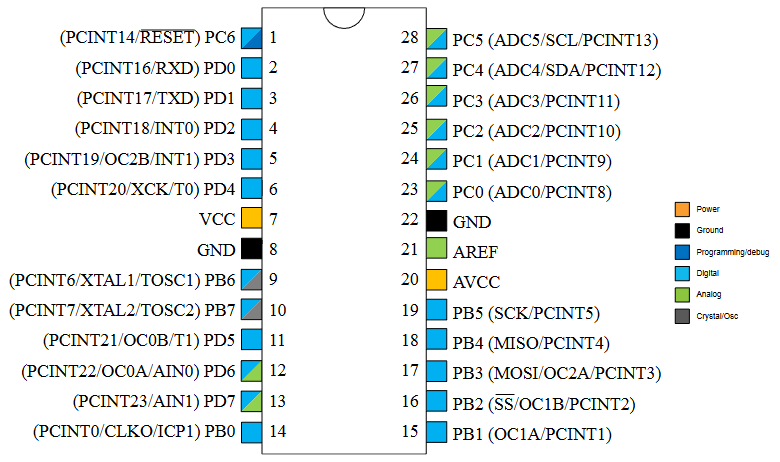

Pinout
Fuses
The default fuse settings for a factory-fresh ATmega328P are:
Low fuse
0x62
High fuse
0xD9
Extended fuse
0xFF
Lock bits
0xFF
These settings configure the chip to use the internal 8 MHz RC oscillator divided by 8 and as a result the default CPU clock is 1 MHz.
