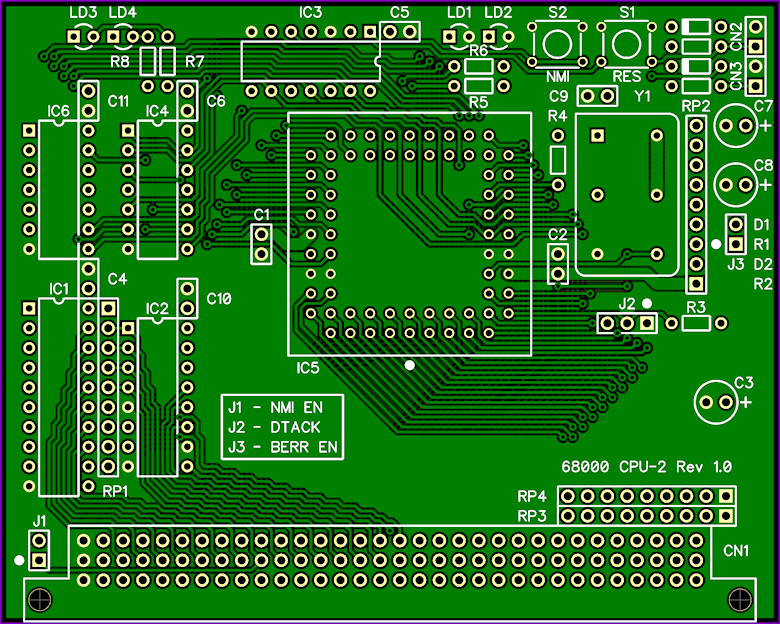

The 68000 CPU-2 Board
This board is a second generation (enhanced) main processor board. The board contains the following:

Space saving PLCC 68000 CPU
POR (Power On Reset) and manual reset circuitry
The CPU/System clock oscillator module

Board Features:

CPU Halt & Reset state indicators
Binary display of the upper 2 address lines (A23 & A22)
Self Test - alone this board can be configured to 'free run'. The 68000 cycles through its entire address range performing an op-code fetch at each address.

Additional Features:

Bus Error support
Full interrupt support including NMI with optional push button NMI.
