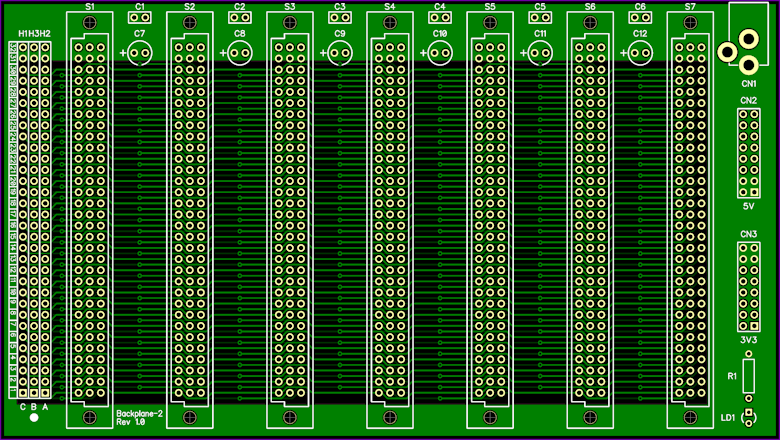

This is the
enhanced 7 slot 60/90 signal single supply rail
backplane for the Mega-68000 Computer System.
Recommended
slot configuration
S1
68000
CPU Board
S2
ACRTC
Board
S3
Memory-2 Board (1)
S4
Memory-2 Board (2)
S5
Dual
6850 Board
S6
S7
Hex
Display Board
Note:
A stock 16MHz
68HC000 processor overclocked to 25MHz has been working
reliably with the above slot configuration -
try/use at your
own risk (no guarantees).
